Automatic equipment for the separation of the tire - rim with a N ° 140 work-hour cycles. Minimum and maximum diameter of the tires to be treated 12 "- 21"

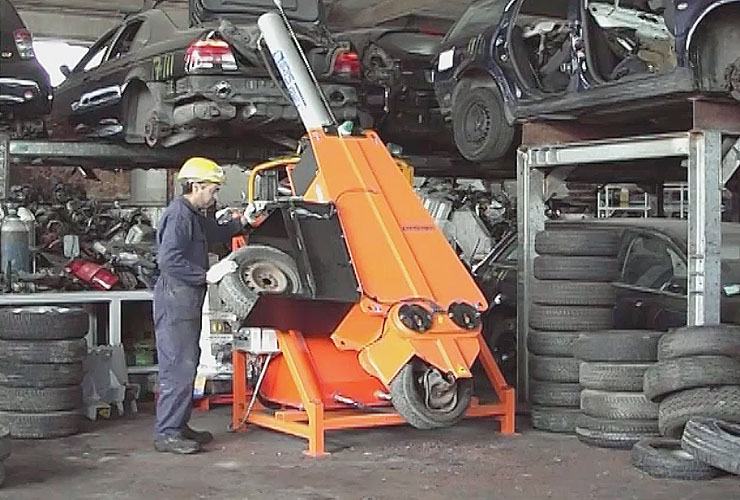

This machine is designed to separate the tire from the rim in an easy and safe way. The wheelspress reduces the volume of the iron and press it ready for furnaces. The wheelspress can crush from 80 to 140 wheels per hour, that means approximately 7054/12125 lb of iron per day. For this reason this machine gives a quick Return of Investment (ROI).
| SR 11E | |
|---|---|
| Engine | 11 kW / 380V - 14.7 hp / 380 V |
| Max working pressure | 80 / 180 bar - 1160 /2320 psi |
| N° cycle-hour | 140 |
| Max flow | 80 l / min - 17 Uk gal / min |
| Weight | 1400 Kg - 3085 Lbs |
| Overall dimensions | 1620 x 2400 h.3050 mm - 64 x 95 in h. 120 in |
| Standard quipment |
|---|
| Locked casing |
| Automatic working cycle electronic control (E model) |
| Automatic power off (E model) |
| Manual centralized lubricator (E model) |
| Optionals |
|---|
| Dust aspirator for inner use |
| Conveyor bell |
| Automatic lubrification |
