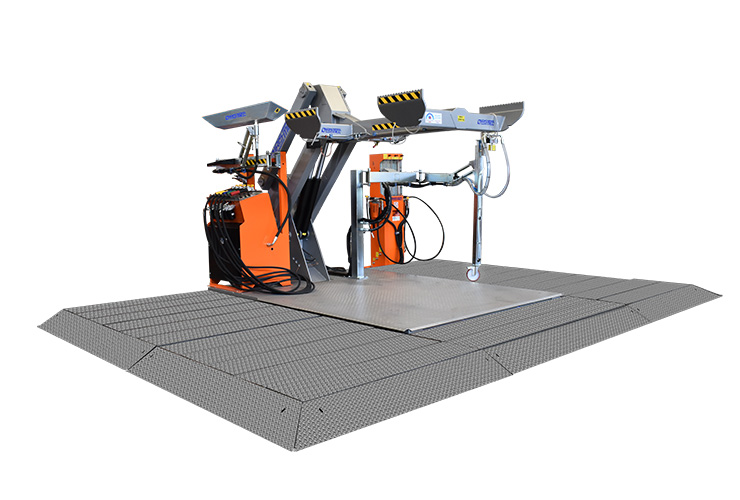

Complete depollution system with recovery systems of fluids, "PFT-Strong" puncher and monitoring quality kit "Visual" from ELV.
Complete depollution system with with Fuel tanks drill with remote controls and Kit for visual inspection of fuel levels.
IBE VS is equipped with:
- Mobile lift PM 35, with a maximum load capacity of 3500 kg – 7716 Lbs;
- Fluids suction system, New ISE – New ISK,
- PFT-Strong: Fuel tanks drill with remote control;
- BRL: adjustable arm for engine oils recovery.
- “Visual” Kit for visual inspection of fuel levels.
Optional equipment on request:
- AdBlue Kit: Liquid suction equipment, only for station with NEW ISK recovery system.
| IBE | |
|---|---|
| Brakes oil | 50 l/min - 10 Uk gal/min Air pump |
| Engine oil drainage | 50 l/min - 10 Uk gal/min Air pump |
| Gear box oil drainage | 50 l/min - 10 Uk gal/min Air pump |
| Windscreen-wiper water | 50 l/min - 10 Uk gal/min Air pump |
| Radiator’s water | 50 l/min - 10 Uk gal/min Air pump |
| Petrol | 50 l/min - 10 Uk gal/min Air pump |
| Gasoil | 50 l/min - 10 Uk gal/min Air pump |
| Pneumatic console | |
| External tanks driven by a processor | |
| N° cycle/hour | 6/10 |
| Max flow ISE NEW | 50 l/min - 10 Uk gal/min |
| Max working pressure ISE NEW | 6 Bar |
| Puncher Beta air drill 500 W | |
| Engine | 3kW 400V 3 ~ |
| Max working pressure PM32 | 175 bar |
| Max flow PM32 | 11.7 l/min - 2,5 UK gal/min |
| Up slope time | 28 sec |
| Down slope time | 12 sec |
| Overall dimensions | 5100 x 3300 mm h. 2400 mm 201 x 130 in h. 95 in |
| Weight | 2400 kg - 5292 Lbs |
